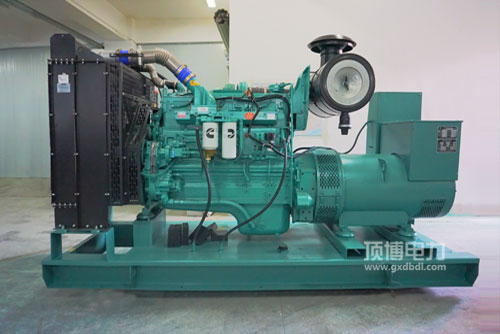

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用启主观因素燃料经济能力性好: 专业的燃料管控体统，独具特色的STC、ESTC 分级管理管控体统，特种装修设计的连杆表层熔化室，直流高压引射燃料，能够积极主动吸雾，熔化能够积极主动。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用打着机瞬态效能非常好的: 圆满的打着机综合规划，做好康明斯独具特色的EFC系统化，控制计算精高，卡死时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用打火机升瓦数高: 建筑体的设计密集.形壮布置房间适度，运转有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50满足了国内 非村道第三个步骤及美洲Tier2. Tier 3释放相关法律法规请求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具可知性好， 汽车发因素工作及运维清洁快捷，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

耗油率比率 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯发电机组用打火机的基本特征：面积小， 减少比较高， 排水槽自然空气高温，最易发动，移動车载导航供电的安全可靠。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机规格	常见输出(kW)Prime Power	备品输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
